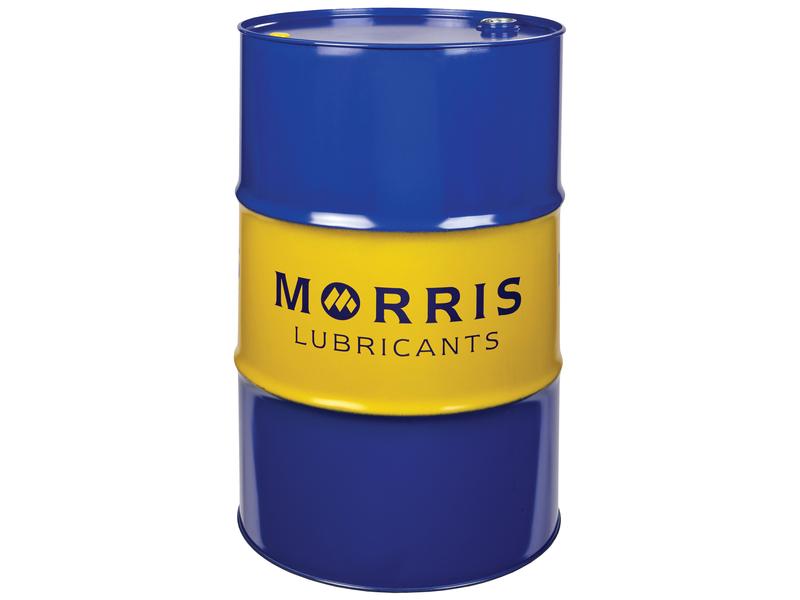

Liquimatic HV46 205L

Specifications

This product is restricted to mainland UK delivery only and is not available to Northern Ireland
For Morris lubricant products, a minimum order quantity (MOQ) of 200 litres is required. Orders placed below this minimum may result in non‑shipment or additional freight charges. These can be mixed product types, provided the total order meets the minimum of 200 litres.
If you need further information or assistance, please contact Customer Care or your Area Sales Manager (ASM).
Liquimatic HV Grades are a range of high viscosity index hydraulic oils, formulated from high quality minerals oils and the latest anti-wear technology. These grades utilise a shear stable polymer that ensures that the oils do not thin down during their working life. They are ideal for hydraulic systems subjected to the very extremes of operating conditions and temperatures, from frozen food stores (-20oC). to industrial hydraulic systems at elevated temperatures and off highway equipment.
They are corrosion and oxidation inhibited and will provide protection even in the presence of seawater. Excellent anti-wear and EP properties provide protection with anti-foam additives to control foam and facilitate rapid air release, ensuring correct hydraulic function and meeting the stringent filterability requirements of modern machines and robotics.
Main Features:
• Outstanding low temperature performance
• Multigrade properties, lubrication film maintained at high temperatures
• Excellent Filterability
• Latest anti-wear and EP technology
• Good thermal stability
Applications:
Recommended for both Industrial and off highway hydraulic systems, where extreme
operating conditions are encountered. Can also be used in hydrostatic drives, power
steering systems, brake systems and other applications where products of this type
and specification required.
Liquimatic HV 46 is particularly recommended for contractor’s plant and machinery.

Barcode 128

S.180304

Barcode EAN13

5045160088609

Brand

Morris Lubricants

Oil Grade

HV46

Reference

LHV205

Size

205L

Specification

Please note not all viscosity grades are applicable to all specifications – if in doubt please refer to contact customer services. DIN 51524 part II (HM), DIN 51524 part III (HV) Eaton E-FDGN-TB002-E Eaton M-2950-S (35VQ25 pump test) Parker HF-0, HF-1, HF-2* (T6H20C hybrid pump test) ISO 11158 categories HM, HV ISO 20763 Conestoga vane pump test Vickers I-286-S3 Cincinnati Machine P-68 (HV32), P-69 (HV46), P70 (HV68)** Poclain Hydraulics (HV46, HV68 for mobile installations). Bosch Rexroth RD/E 90235 JCMAS P041 HK ANSI/AGMA 9005-E02-RO GM LS-2 SEB 181222 ASTM D6158 AIST 126, 127 SAE MS 1004 (HM, HV) ** Specifications now obsolete Approvals: * Liquimatic HV46 is listed on the Parker approved list of fluids. Approval number: 482(1), class HV.

Tariff Code

2710198300

Type

High Viscosity Index Hydraulic Oils

Suitable For Make/Model

This product is not associated with any particular make or model

OEM Part Numbers

This product is not associated with any particular OEM part number

Catalogue Pages

This product does not appear in any Sparex printed catalogues
